KP981A
KP981A - Silicon MOS N-Channel RF Power Transistor 5 W, up to 500 MHz, Enhancement Mode

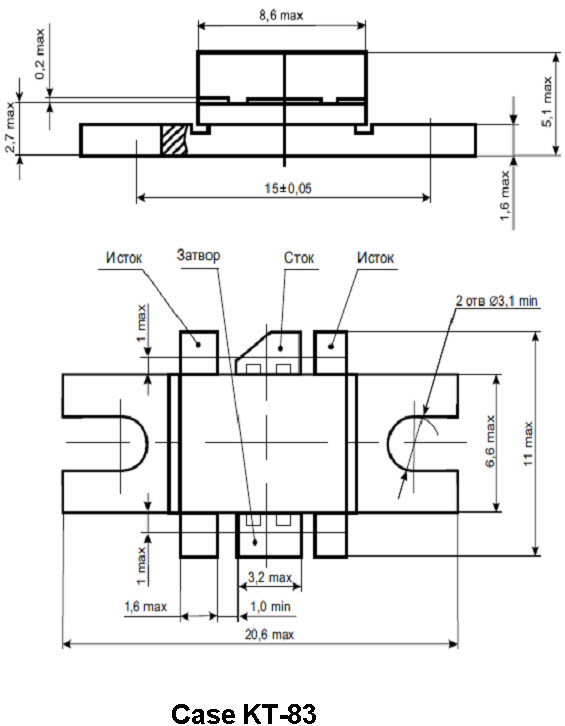

Designed primarily for wideband large–signal output and driver from 30–500 MHz.
Features:
- Performance at 500 MHz, 12.5 Vdc
- Power Gain: 10 dB Min
- Output Power: 5 W
- Efficiency: 50 % Min
Absolute Maximum Ratings
Parameters | Sym | Value | Unit |
---|---|---|---|
Drain-Source Voltage | VDSS | 40 | VDC |
Drain Current-Continuous | ID | 1.5 | ADC |
Gate-Source Voltage | VGS | ±20 | VDC |
Storage Temperature Range | TSTG | -65 tu +150 | ºC |
Thermal Resistance, Junction to Case | RqJC | 7 | ºC/W |
Total Power Dissipation @TC=25 oC | PD | 25 | W |
Parameters
Parameter | Symbol | Min. | Typ. | Max. | Unit |
---|---|---|---|---|---|
Drain-Source Breakdown Voltage (ID=5.0 mA, VGS=0 V) | V(BR)DSS | 40 | — | — | VDC |
Gate-Source Leakage Current (VGS=20 V, VDS=0 V) | IGSS | — | — | 1.0 | mADC |
Zero Gate Voltage Drain Leakage Current (VDS = 12.5 V, VGS=0 V) | IDSS | — | — | 2.0 | mADC |
Gate Threshold Voltage (VDS = 10 V, ID = 20 mA) | VGS(TH) | 1 | — | 5 | VDC |
Forward Transconductance (VDS = 10 V, ID = 0.7 A) | GFS | 0.33 | 0.4 | — | mhos |
Input Capacitance (VDS = 12.5 V, VGS=0 V, f = 1 MHz) | CISS | — | 18 | — | pF |
Output Capacitance (VDS = 12.5 V, VGS=0 V, f = 1 MHz) | COSS | — | 24 | — | pF |
Reverse Transfer Capacitance (VDS = 12.5 V, VGS=0 V, f = 1 MHz) | CRSS | — | 3.2 | — | pF |
Power Gain (VDS = 12.5 V, POUT = 5 W, lDQ. = 50 mA, f = 500 MHz) | Gp | 10 | 12 | — | dB |
Drain Efficiency (VDS = 12.5 V, POUT = 5 W, lDQ. = 50 mA, f = 500 MHz) | hD | 50 | 55 | — | % |
